Model
|
TI-N6410NM-W-KIT
|
|

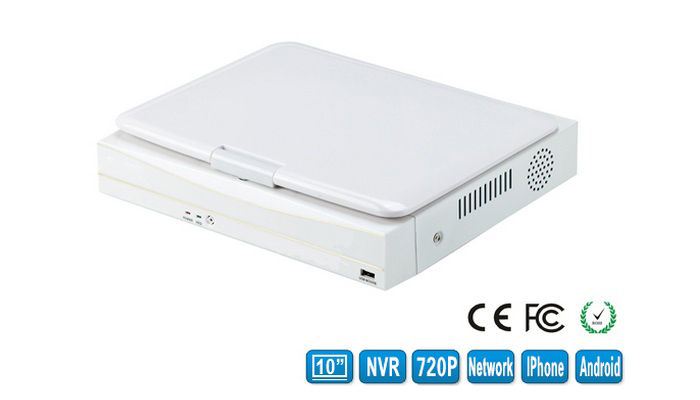

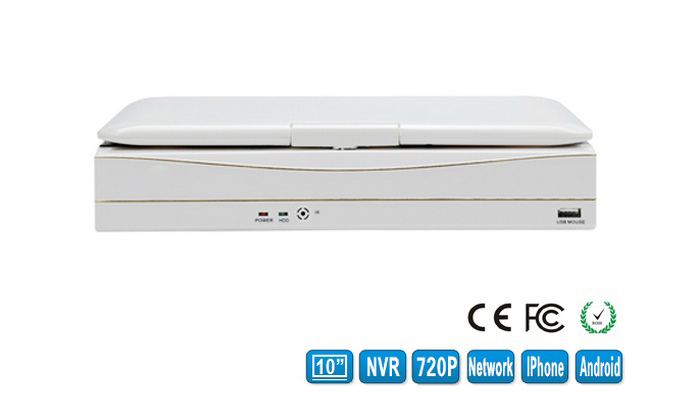

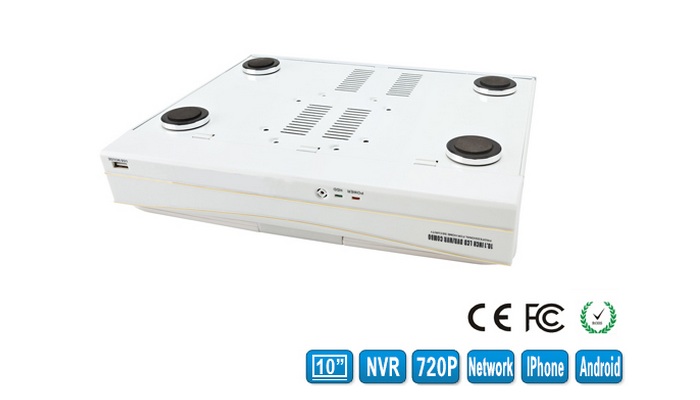

NVR Specification
|
|
Display
|
10' LCD Screen (1280*1024) support 270degree rotate, 80degree flip (up and down)
|
|
AV(audio/video)input
|
Operating System
|
Embedded Linux OS
|
|
Network Video
|
4CH
|
|
Network video input broadbank
|
20Mbps
|
|
AUdio Bitrate
|
64Kbps
|
|
AV (audio/video) output
|
HDMI input
|
1ch，resolution：1024x768，1366x768，
|
|
1440x900,1920x1080p
|
|
VGA output
|
1ch，resolution：1024x768，1366x768，
|
|
1440x900,1920x1080p
|
|
AV CODEC Specification
|
Video Resolution
|
D1/720P
|
|
synch-playback
|
4CH
|
|
Video Control
|
Video/Capture mode
|
Maual、Time、Motion、Alarm
|
|
Playback mode
|
Real time、Routine、Event
|
|
Backup
|
USB backup
|
|
Alarm
|
Alarm Input
|
4ch (optional)
|
|
Alarm Output
|
1ch (optional)
|
|
Hard Disk
|
Type
|
1*SATA interface
|
|
Max Capacity
|
4 TB at most for each
|
|
External Interface
|
Network Interface
|
1 adaptable RJ45 10M/100M, 1 WIFI interface
|
|
USB Interface
|
2 USB 2.0
|
|
Network Control
|
Protocol
|
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
|
|
DHCP (Automatically obtain an IP address), etc…
|
|
Others
|
Power Supply
|
DC12V3A
|
|
Power Consumption (W)
|
≤5W（Without HDD）
|
|
Operate Temperature (°C)
|
-10℃~+55℃
|
|
Working Humidity (%) RH
|
10%~90%
|
|
Size
|
257mm（W）×210mm（V）×45mm（H）
|
|
Weight（excluding HDD）
|
≤1Kg
|
|
IPC Specification
|
|
Details
|
Sensor
|
1/4” Progressive Scan Sensor
|
|
Signal System
|
PAL/NTSC
|
|
Resolution
|
1280 x 720 16 : 9 High Defination
|
|
Minimum illumination
|
Color: 0.1 Lux; B/W: 0.01 Lux
|
|
Shutter
|
1/25s to 1/25,000s
|
|
Lens
|
3.6mm
|
|
OSD
|
Date Time & Title
|
|
White Balance
|
Auto
|
|
Day&Night
|
Auto / Color / BW
|
|
3D-DNR
|
Auto
|
|
Mirror/Flip
|
On / Off
|
|
Frame Specification
|
Three Streaming at the Same Time:
|
|
H.264 128x720@30fps or below
|
|
H.264 640x480@30fps or below
|
|
S/N
|
> 39.1 Db
|
|
Interface
|
RJ45 / WIFI 802.11b/g/n
|
|
General Specification
|
Anti-thunder Level
|
Standard IEC61000-4-5
|
|
Working Temperature/Humidity
|
-10℃ to +50℃ / 30% to 80% RH
|
|
Working Temperature/Humidity
|
-20℃ to +60℃ / 20% to 90% RH
|
|
Power Input
|
DC12V-1A
|
|
Power consumption
|
≤6W
|
|
Size
|
205(L)×70(W)×55 (H)mm
|
|
Weight
|
500g
|
|
Level of Protection
|
IP66
|
