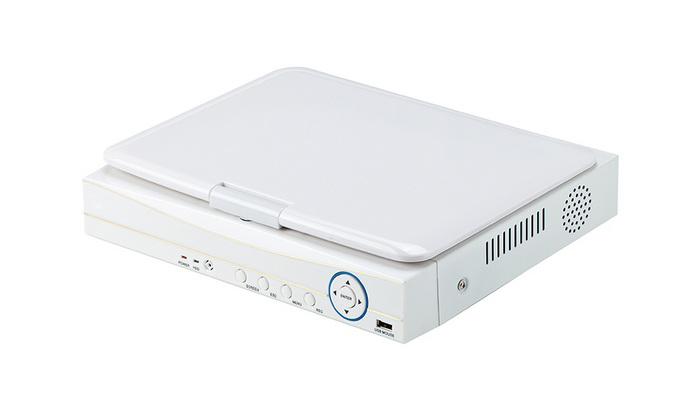

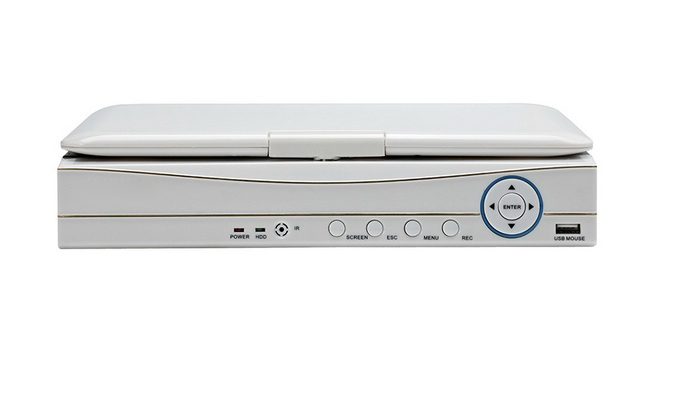

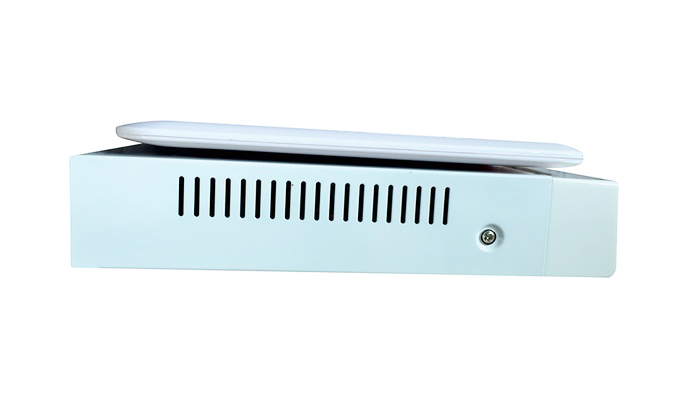

Model
|
TI-AHD6814MKS
|
|
AHD DVR specification
|
|
Display
|
10' LCD Screen (1280*1024) support 270degree
rotate, 80degree flip (up and down)
|
|
System
|
Main
processor
|
Embedded
LINUX operating system,H.264(Main Profile)Hi3520D
|
|
Display
|
Multilingual
Language
|
YES, 28 kinds
of language
|
|
Display
screen
|
1/4/8ch
screen
|
|
Video
|
Video
standard
|
PAL(625
lines, 50fps); NTSC(525lines, 60fps)
|
|
Monitor
quality
|
Monitor:D1;
HDMI,VGA:(1280*1024, 1024*768, 1280*720)
|
|
Recording
capability
|
8*960H@25fps/8D1
|
|
Playback
capability
|
8*960H@25fps/1D1
|
|
Multi-mode
connection
|
Analog：8CH AHD@25fps Recording / 4CH
AHD playback
|
|
Hybrid: 4CH AHD+4CH 720P IP
|
|
IP : 8*1080P/8*720P
|
|
8*960H；1*1080P+1*720P+2*D1
|
|
Audio
|
Audio
compression
|
G.711A, 1ch Input
and 1ch Output
|
|
Interface
|
Video input
|
8CH
BNC(1.0Vp-p, 75Ω)
|
|
Audio
input
|
1CH RCA
|
|
Audio
output
|
1CH RCA
|
|
Network
port
|
1*RJ45 10/100
Base-T self-adaptive Ethernet port
|
|
PTZ
control
|
1*RS485 port,
Support more than 20 kinds protocols.
|
|
USB
port
|
3*USB 2.0
port
|
|
HDD
port
|
Accommodates 1 SATA HDDs (1 HDD capacity up
to 3TB)
|
|
Remote
|
CMS
|
CMS Software
for multiple DVR (up to 255 DVR simultaneously)
|
|
Browser
|
Internet
Explorer, Mozilla Firefox, Google Chrome, Safari
|
|
On-line
user
|
Max. 10
|
|
Mobile
Surveillance
|
YES (Support
iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone,
Andriod have remote playback function)
|
|
Adaptor
|
Power Source
(±10%)
|
DC 12V / 3A
|
|
CAMERA Specification
|
|
Image Sensor
|
Progressive Scan CMOS
|
|
Signal System
|
PAL/NTSC
|
|
Min. illumination
|
0.01Lux @ (F1.2,AGC ON),0 Lux with IR
|
|
0.05Lux @ (F1.4,AGC ON),0 Lux
with IR
|
|
SN
|
≥50dB
|
|
Day & Night
|
ICR
|
|
Shutter Speed
|
PAL:1/50-1/50000 NTSC:1/60-1/60000
|
|
Wide Dynamic Range
|
dWDR, OFF/ON(Level 0-8)/Auto
|
|
Digital Noise Reduction
|
2D/3D
|
|
Lens
|
3.6mm
|
|
IR LED
|
24pcs
|
|
IR Wavelength
|
850nm
|
|
IR distance
|
15m
|
|
Effective Resolution
|
1280x720
|
|
Frame
|
PAL:25fps ,NTSC:30fps
|
|
White Balance
|
ATW/AWC-SET/Indoor/Outdoor/MANUAL
|
|
Gain
|
Level 0-15
|
|
Light Compensation
|
BLC/HLC/OFF
|
|
VIDEO OUTPUT
|
|
Max Distance
|
>300m, 75-5
|
|
Output Interface
|
1ch HD Analogue
|
|
GENERAL
|
|
Power Supply
|
DC12V±10%
|
|
Power Consumption
|
4.5W(Max)
|
|
Operating Temperature
|
-10℃~+55℃
|
|
Operating Humidity
|
0% - 85% RH
|
|
Ingress Protection
|
IP66
|
|
Approvals
|
CE / FCC
|
|
Material
|
Aluminium Alloy
|
|
Product Dimensions
|
205(L)×70(W)×55 (H)mm
|
|
Product Weight
|
350g
|
