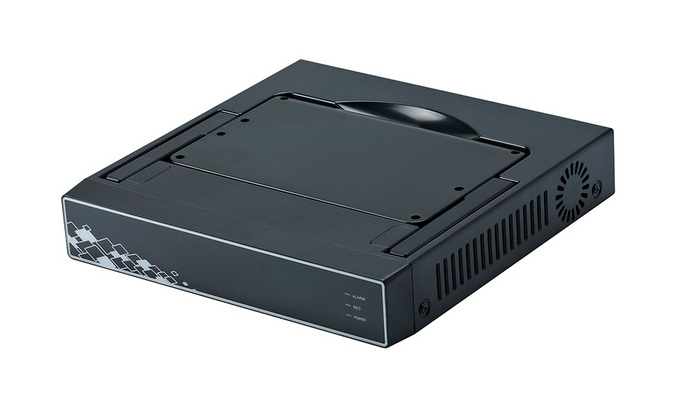

TI-AHD6804MKS
8ch 7inch LCD AHD DVR KIT
8 Channel H.264 DVR Kit
-With 8 pcs CMOS 1MP cameras and 8 pcs 18m cables
- Camera IR distance up to 50ft(15m)with weatherproof IP65
-H.264 Compression & Virus free Linux O/S
-Support mobile phone live view & Email Alarm
-Real hexaplex operation -simultaneous record,playback,mobile phone live view,backup,control & remote access.
-Support full 720p real-time record
-Hi-speed backup/upgrade/record via USB2.0
Pack Contents:
DVR KIT
1x 8 channel H.264 DVR
8x CMOS 1MP Camera
8x 18m BNC to BNC Cable
1x Power Supply Adaptor
2x 1 to 4 Power Splitter Cable
1x USB Mouse
1x Operating Manual
|
|
Model
|
TI-AHD6804MKS
|
|
AHD DVR specification
|
|
Display
|

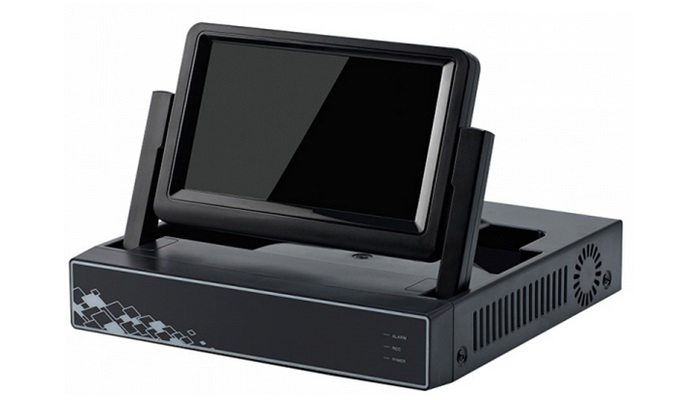

7' LCD Screen (1280*1024) support 270degree
rotate, 80degree flip (up and down)
|
|
System
|
Main
processor
|
Embedded
LINUX operating system,H.264(Main Profile)
|
|
Display
|
Multilingual
Language
|
8 kinds of
language
|
|
Display
screen
|
4ch screen
|
|
Video
|
Video
standard
|
PAL(625
lines, 50fps); NTSC(525lines, 60fps)
|
|
Monitor
quality
|
Monitor:D1;
HDMI,VGA:(1280*1024, 1024*768, 1280*720)
|
|
Playback
quality
|
960H/D1/HD1/CIF
|
|
Recording
capability
|
8CH
960H@25fps Recording / 8CH 960H Playback
|
|
Hybrid: 2D1(analog)+1*720P(IP)+1*1080P(IP)
|
|
Playback
capability
|
IP:
8*1080P/8*720P/1*1080P/8*8D1
|
|
Audio
|
Audio
compression
|
G.711A,
|
|
Interface
|
Video input
|
8CH
BNC(1.0Vp-p, 75Ω)
|
|
Video
output
|
1CH BNC, 1CH
VGA,1CH HDMI
|
|
Audio
input
|
1CH RCA
|
|
Audio
output
|
1CH RCA
|
|
Network
port
|
1*RJ45 10/100
Base-T self-adaptive Ethernet port
|
|
PTZ
control
|
1*RS485 port,
Support more than 20 kinds protocols.
|
|
USB
port
|
3*USB 2.0
port
|
|
HDD
port
|
Accommodates 1 SATA HDDs (1 HDD capacity up
to 3TB)
|
|
Remote
|
CMS
|
CMS Software
for multiple DVR (up to 255 DVR simultaneously)
|
|
Browser
|
Internet
Explorer, Mozilla Firefox, Google Chrome, Safari
|
|
On-line
user
|
Max. 10
|
|
Mobile
Surveillance
|
YES (Support
iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android; iPad,
iPhone, Andriod have remote playback function)
|
|
Adaptor
|
Power Source
(±10%)
|
DC 12V / 3A
|
|
CAMERA Specification
|
|
Image Sensor
|
Progressive Scan CMOS
|
|
Signal System
|
PAL/NTSC
|
|
Min. illumination
|
0.01Lux @ (F1.2,AGC ON),0 Lux with IR
|
|
0.05Lux @ (F1.4,AGC ON),0 Lux
with IR
|
|
SN
|
≥50dB
|
|
Day & Night
|
ICR
|
|
Shutter Speed
|
PAL:1/50-1/50000 NTSC:1/60-1/60000
|
|
Wide Dynamic Range
|
dWDR, OFF/ON(Level 0-8)/Auto
|
|
Digital Noise Reduction
|
2D/3D
|
|
Lens
|
3.6mm
|
|
IR LED
|
24pcs
|
|
IR Wavelength
|
850nm
|
|
IR distance
|
15m
|
|
Effective Resolution
|
1280x720
|
|
Frame
|
PAL:25fps ,NTSC:30fps
|
|
White Balance
|
ATW/AWC-SET/Indoor/Outdoor/MANUAL
|
|
Gain
|
Level 0-15
|
|
Light Compensation
|
BLC/HLC/OFF
|
|
VIDEO OUTPUT
|
|
Max Distance
|
>300m, 75-5
|
|
Output Interface
|
1ch HD Analogue
|
|
GENERAL
|
|
Power Supply
|
DC12V±10%
|
|
Power Consumption
|
4.5W(Max)
|
|
Operating Temperature
|
-10℃~+55℃
|
|
Operating Humidity
|
0% - 85% RH
|
|
Ingress Protection
|
IP66
|
|
Approvals
|
CE / FCC
|
|
Material
|
Aluminium Alloy
|
|
Product Dimensions
|
205(L)×70(W)×55 (H)mm
|
|
Product Weight
|
350g
|
|
|
|
|
|
