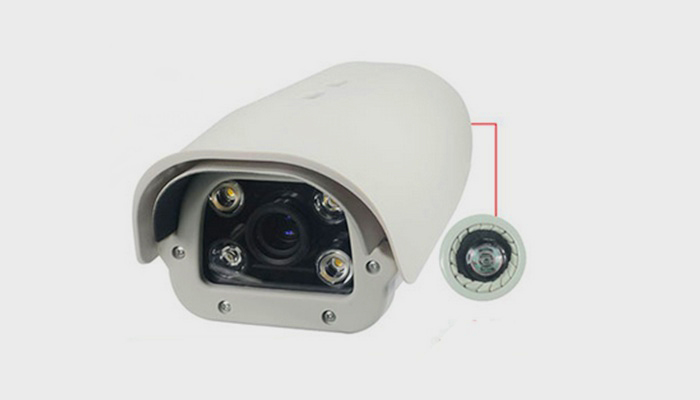

TI-AHD13LPR
1/3" 1.3MP Megapixel CMOS LPR Camera for Parking lot
●1/3" 1.3MP Megapixel CMOS Sensor
●2.8-12/6-22mm Auto iris Lens
●Not expouse, Not loss video
●6 Kinds of modes for Easy Operation |
|
Model No.:
|
TI-AHD13LPR
|
|
IP Rating
|
IP66
|
|
Filter
|
Removable IR Cut Filter
|
|
Image Sensor
|
1/3" 1.3MP
Megapixel CMOS Sensor
|
|
Pixels
|
1280(H)*1024(V)
|
|
Horizontal Resolution
|
720P
|
|
Viewing Angle
|
Horizontal: 90°- 28°
|
|
Minimum Lux
|
0Lux(8PCs Super High Power IR LEDs ON)
|
|
Vertical Frequency
|
NTSC:60Hz PAL:50Hz
|
|
Scanning System
|
Progressive
|
|
S/N Ratio
|
≥52dB
|
|
Electronic Shutter
|
NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
|
|
Lens
|
2.8-12/6-22mm Varifocal IR Lens
|
|
White Balance
|
ATW
|
|
OSD
|
YES
|
|
BackLight Compensation
|
AUTO
|
|
AUTO Gain Control
|
ON
|
|
Defog
|
OFF/ON
|
|
DNR
|
OFF/ON
|
|
WDR
|
OFF/ON
|
|
Day&Night
|
AUTO/Color/BW/Ext
|
|
Gamma
|
0.45
|
|

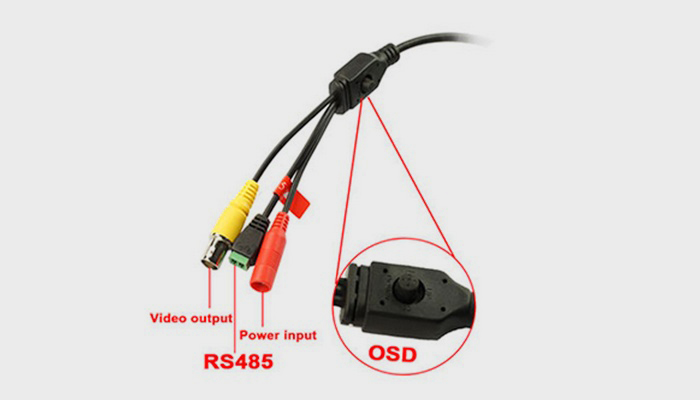

Video Output
|
HD-AHD(720P)/ CVBS
|
|
Power Supply
|
DC12V±10%
|
|
Current consumption
|
1100mA (MAX)
|
|

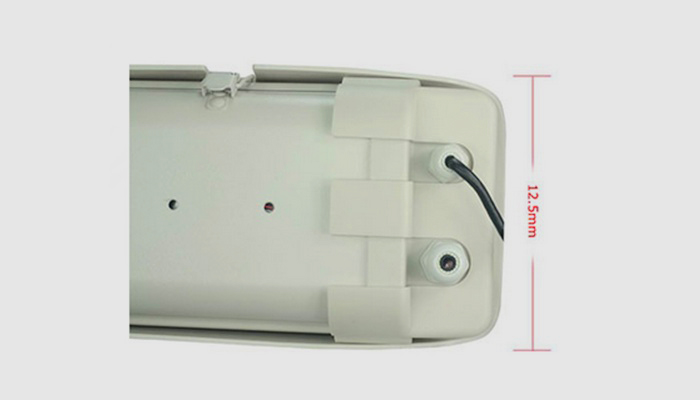

Dimension
|
420x147x101mm
|
|
Weight
|
1700g （
|
|
Storage Temperature
|
-30～+60℃
|
|
Operating Temperature
|
-30～+40℃
|
|
 |
|
|
|
