TI-ALPR20CL/IH

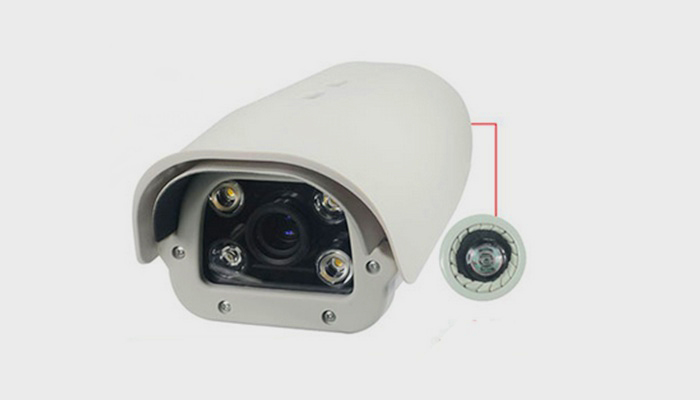

700TVL 1/3" SONY CCD 5-50mm LPR Camera For Highway
●700TVL, SONY CCD, IR-Cut

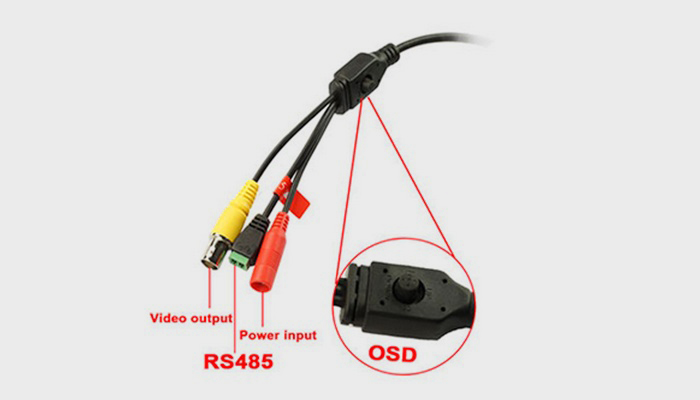

●4pcs Array Leds, with RS485
●5-50mm IR Correction Lens
●Keep Focus, Not expouse, Not loss video
●6 Kinds of modes for Easy Operatio |
|
Model
No.
|
TI-ALPR20CL/IH
|
|
IP Rating
|
IP66
|
|
Signal System
|
NTSC/PAL
|
|
Pick Up Device
|
1/3" 960H CCD
|
|
Picture Elements
|
NTSC:1020H×508V PAL:1020H×596V
|
|
Resolution
|
700TVL
|
|
Min Illumination
|
0Lux(4PCs Super High Power IR LEDs ON)
|
|
Vertical Frequency
|
NTSC:60Hz PAL:50Hz
|
|
Horizontal Frequency
|
NTSC:15.734KHz PAL:15.625KHz
|
|
Clock Frequency
|
NTSC/PAL:36MHz
|
|
Scanning System
|
2:1 Interlace
|
|
S/N Ratio
|
≥52dB
|
|
Lens
|
5-50mm Auto IRIS Varifocal IR Lens
|
|
Viewing Angle
|
Horizontal: 32°-14°
|
|
White Balance
|
ATW
|
|
Back Light Compensation
|
OFF
|
|
Auto Gain Control
|
OFF
|
|
OSD
|
YES
|
|
NR
|
DNR
|
|
GAMMA
|
0.45
|
|
Video Out-put
|
1V p-p,75Ω
|
|
Power Supply
|
DC12V ±10%
|
|
Current Consumption
|
1100mA(MAX)
|
|

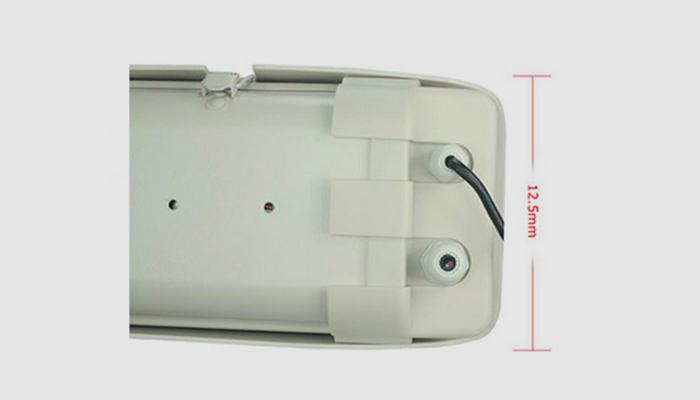

Dimension
|
420x147x101mm
|
|
Weight
|
1700g
|
|
Storage Temperature
|
-30～+60℃ (-22～+140℉)
|
|
Operating Temperature
|
-30～+40℃ (-22～+104℉)
|
Video Performance:
|
 |
|
|
|
