TI-CVI923

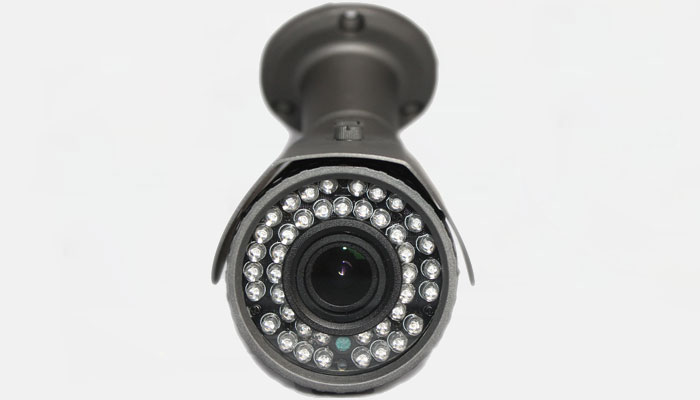

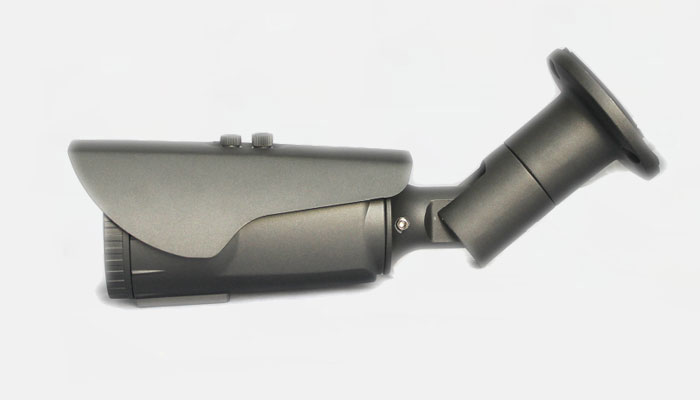

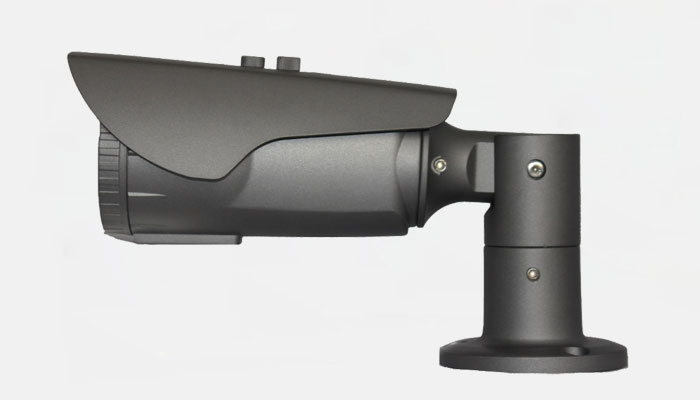

HDCVI 1080P Varifocal 35M IR Bullet CAMERA
●1/3" 2Megapixel CMOS
●25/30fps@1080P, 25/30/50/60fps@720P
●High speed, long distance real-time transmission
●HD and standard definition switchable
●OSD Menu, control over coaxial cable
●DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
●2.8~12mm vari-focal lens
●Max. IR LEDs length 50m, Smart IR
●IP66, DC12V
|
|
Model
|
TI-CVI923
|
|
Camera
|
|
Image Sensor
|
1/3" 2Megapixel CMOS
|
|
Effective Pixels
|
1920(H)×1080(V)
|
|
Electronic Shutter
|
1/3s~1/100,000s
|
|
Video Frame Rate
|
25/30fps@1080P
|
|
Synchronization
|
Internal
|
|
Min. Illumination
|
0.05Lux@F1.2(AGC ON), 0Lux IR on
|
|
Video Output
|
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
|
|
Camera Features
|
|
Max. IR LEDs Length
|
50m, Smart IR
|
|
Day/Night
|
Auto(ICR) / Color / B/W
|
|
Noise Reduction
|
2D/3D
|
|
OSD Menu
|
Support
|
|
Lens
|
|
Focal Length
|
2.8~12mm
|
|
Angle of View
|
H: 105.5º~32.9º
|
|
Lens Type
|
Manual / Fixed Iris
|
|
Mount Type
|
Φ14
|
|
General
|
|
Power Supply
|
DC12V±10%
|
|
Power Consumption
|
Max 4.5W
|
|
Working Environment
|
-30°C~+60°C / Less than 95%RH (no condensation)
|
|
Transmission Distance
|
Over 500m via 75-3 coaxial cable
|
|
Ingress Protection
|
IP67
|
|
Dimensions
|
Φ70*L256MM
|
|
Weight
|
504G
|
|
Material
|
Metal
|
|
|
|
|
|
