TI-SKB1780

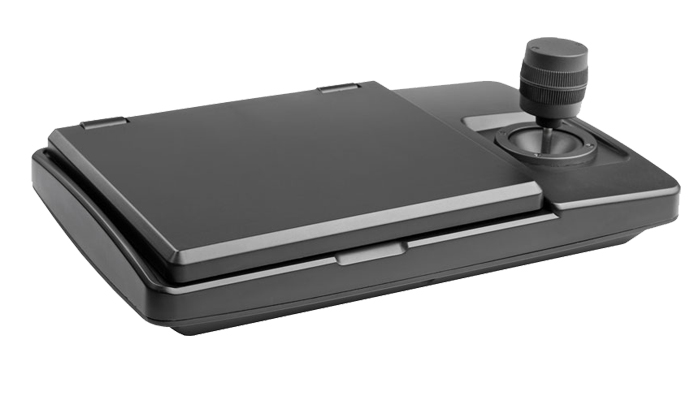

TI-SKB1780 8inch Screen SDI PTZ Controller
●Protable Foldable HD visual Keyboard,Show the camera pictur in the real time
●Control the high speed dome
● DVR,Matrix,By 3-Axis Joystick, which is compatible with Multi protocols
●Support the 4 pcs keyboard together in sthe same time
●8 Inch High definition TFT -LCD Screen Can show the image that returns from the
front-end in real time
●Image is adjustable automatically, No Manual setting
●OSD edible menu in Chinese and English can set the kinds of Protocols
●It easy to operate. Support ABS,VGA signal input 800*600 resolution.
●control high speed dome from different factories and mainstream DVR and Pelco matrix
●Independet interface Panel and expansively, which can meet the requirement of markets.
●Extra-Low consumption, 1W for standby mode,
●Foldable structure design can show the best view screen
|
|
Model No.
|
TI-SKB1780
|
|
LCD screen
|
8"
TFT-LCD
|
|
View angle
|
0°~135°
|
|
Video input
|
Complex video（NTSC/PAL），HD-SDI, VGA
|
|
communication
|
RS232,RS485
|
|
Distance
|
Max.
transmitting distance 1200m
|
|
Baud rate
|
2400bps,4800bps,9600bps,19200bps
|
|
Protocol
|
PELCO P/D,
VISCA,DAHUA,HAIKAN
|
|
Power supply
|
DC( 9V～12V)±10%
|
|
Electric current
|
350mA
|
|
Battery
|
Ni-MH 700mAh
|
|
Power consumption
|
4.2W
|
|
Standby consumption
|
1W
|
|
Environment temperature
|
-20℃ ~ +50℃
|
|
Humidity
|
0~95%(Non-condensation)
|
|
Dimension
|
290(L)*191(W)*95(H)mm
|
|
Net weight
|
1.6Kg
|
|
 |
