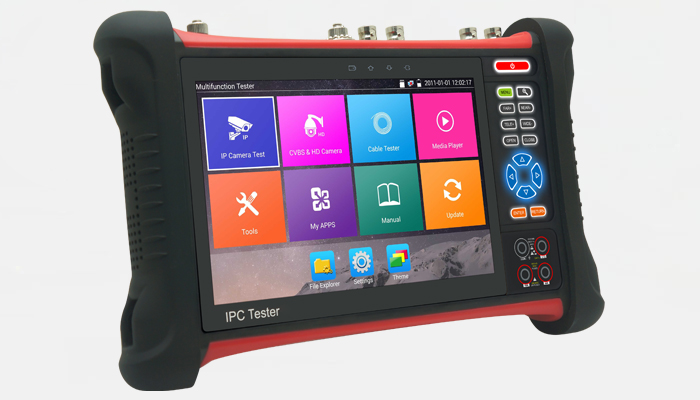

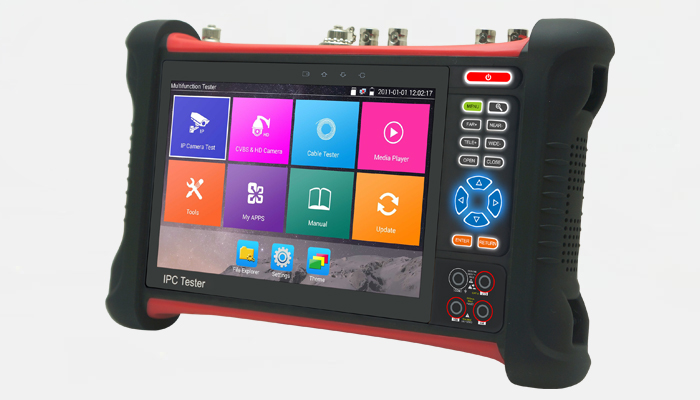

TI-HT9697S

New 1920*1200 7" Retina touch screen 6-in-1 Multi-functions Test monitor

1.       New -7 inch retina touch screen ,1920*1200 resolution

2.       H.264 & H .265 ,4K video display via mainstream

3.       8MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

4.       5MP AHD test, 2560x1440P 15F/25F/30FHD,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

5.       8MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

6.       HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS

7.       IP & CVBS camera test ,PTZ controller

8.       Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement

9.       Cable tracer :search BNC cable, network cable and telephone cable from the mess cable

10.    New- Rapid video, just by one key to detect all network cameras and auto display

11.    TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile phone)

12.    Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

13.    New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS

14.    New- In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in

15.    New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

16.    Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need to customize

17.    New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

18.    New- Screen lock, password lock and pattern lock are optional

19.    New- HDMI signal in and out , support 1080P

20.    NEW- Backlit buttons.

21.    New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot

22.    New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

23.    New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

24.    New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

25.    ONVIF camera test, support 12MP,8MP,5MP, 4K,1080P,720P IPC, Network PTZ controller (ONVIF)

26.    Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

27.    New- 4K video files and MKV/MP4 media files play

28.    PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

29.    New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable

30.    8GB SD card including

31.    IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

32.    Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

33.    Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

34.    POE voltage measurement, PING test ,IP address scan, port flashing etc

35.    Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

36.    7.4 V /5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging , working time lasts 10 hours
