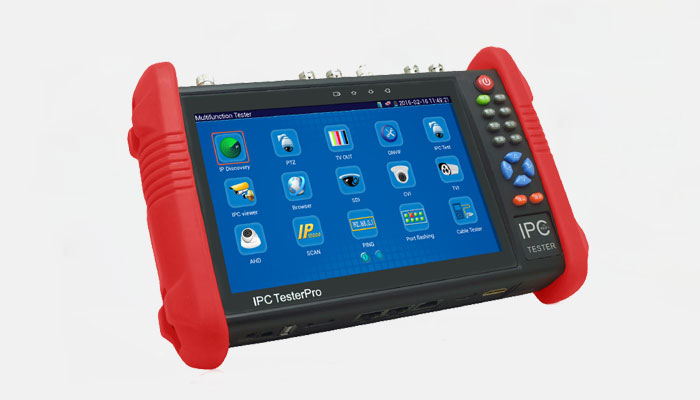

Economic SDI/IP/TVI/CVI/AHD/ANALOG Security Tester

1.       IPS 7 inch  TFT-LCD test monitor with  touch screen ,1280*800 resolution

2.       LCD screen with brightness/contrast/color saturation adjustment

3.       Built in Wi-Fi can receive images from wireless cameras ,

4.       ONVIF and customized IP cameras(with more than 80 brand camera ,such as DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera)

5.       ONVIF IP camera test, support 2592*1520

6.       8GB SD card including

7.       Test H.264/MPEG4/MJPEG IP cameras

8.       Video image magnification enables detailed viewing

9.       HDMI signal output, supports 1080p

10.     Analog camera image display, auto adapts and display NTSC or PAL video formats

11.     Supports RS232/RS485, Rate 600 - 115,200bps adjustable

12.     AHD/CVI/TVI camera test. snapshot ,video record and playback ,zoom, support 1080P

13.     HD-SDI camera test , SDI input, 1280x720P 25Hz/ 1280x720P 30Hz/ 1280x720P 50Hz/ 1280x720P 60Hz/1920x1080P 25Hz/ 1920x1080P 60Hz/1920x1080I 50Hz/ 1920x1080I 60Hz

14.     IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

15.     Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.

16.     Hik test tool app is design for activating and debugging Hikvision camera can auto-identify inactivated hikvision camera, also can display image from the Hikvision camera.

17.     DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.

18.     Snapshot and save images as JPG files in an SD card, video record and playback

19.     Support mobile client of the IP camera

20.     Display real resolution of the IP camera images

21.     PTZ controller ,Photograph, Video record, Record playback

22.     Color bar generator, analog video color bar and testing image output

23.     POE voltage test, PING test ,IP address scan, port flashing etc

24.     DC 48V PoE power output, supplies temporary power for PoE cameras

25.     12V /2A power output

26.     5V 2A power output, as the power bank

27.     Audio input and output test

28.     LED lamp, calculators, music players and other application tools

29.     7.4V Lithium polymer battery ,5800mAh,after charging 7~8 hours ,working time last 10 hours
