TI-Y-4W
Smart H264 150Mbps(Max)
Sound wave binding，QR code binding

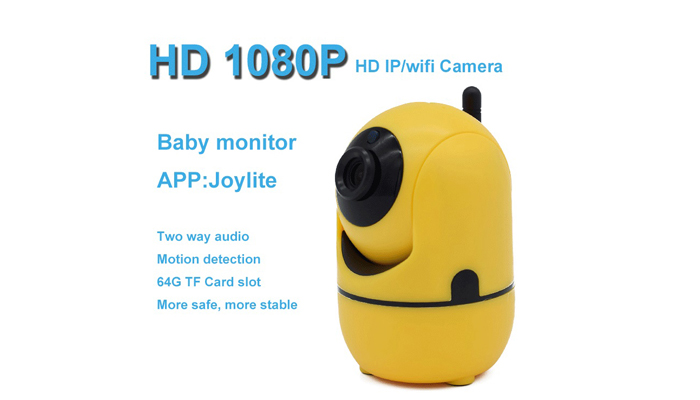

Super Mini Wireless Security IP Camera Wifi IR-Cut Night Vision Two Way Audio Recording Surveillance Network Indoor Baby Monitor
WIFI（IEEE 802.11b/g/n）
150Mbps(Max)
Sound wave binding，QR code binding |
|
Product information
|
Chip
|
Ingenic T10
|
Ingenic T10
|
|
|
CPU
|
Single core：1.2GHz
|
|
|
Memory
|
Embedded 16bit@400Mhz DDRII;512M
|
|
Image sensor
|
Sensor type
|
H62 1/4 inch
|
0826 1/3 inch
|
|
|
Pixel
|
1280×720
|
1920×1080
|
|
|
Minimum illumination
|
0.001
|
|
Lens
|
Lens type
|
Glass lens
|
|
|
Lens parameters
|
Fixed focal length：3.6mm Aperture：2.4
|
|
|
Viewing angle
|
60°
|
|
|
Day and night function
|
IR-CUT
|
|
|
Night vision distance
|
5 meters
|
|
Connection
|
Network protocol
|
HTTP,FTP,TCP/IP,UDP,SMTP
|
|
|
|
DHCP,PPPoE,DDNS,UPnP
|
|
|
Wired network
|
Unsupport
|
|
|
Wireless network
|
WIFI（IEEE 802.11b/g/n）
|
|
|
Wireless rate
|
150Mbps(Max)
|
|
|
Connect bind
|
Sound wave binding，QR code binding
|
|
|
P2P connection
|
Support
|
|
|
RS-485 interface
|
Unsupport
|
|
Pan-Tilt angle
|
Horizontal angle
|
350°
|
|
|
Vertical angle
|
120°
|
|
Software characteristic
|
Video compression format
|
Smart H264
|
|
|
Bitstream
|
Dual bitstream
|
|
|
Resolution
|
1920*1080/1280×720/640*360
|
|
|
Video frame rate
|
15fps
|
|
|
Mirror flipping 180°
|
Support
|
|
|
Motion detection
|
Support
|
|
|
|
|
|
