Camera
|
SOC
Chip
|
Hi3516D
|
|
Image Sensor
|
1/2.7"
Progressive Scan CMOS
|
|
Lens Mount
|
M14
|
|
LENS
|
Fix
iris
|
|
Focal
|
2.8~12mm Lens
|
|

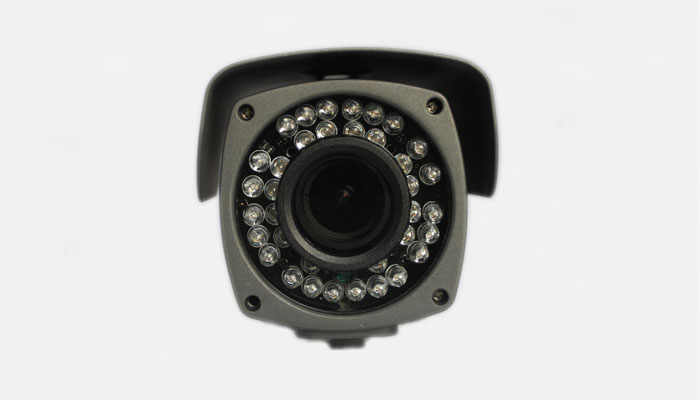

IR LED
|
42PCS
|
|
IR Distance
|
35Meter
|
|
Wide Dynamic Range
|
Digital
WDR
|
|
Digital noise reduction
|
3D
DNR(≥50dB(AGC OFF))
|
|
Day& Night
|
IR
cut filter with auto switch
|
|
Min.Illumination
|
Color
Mode:0.1Lux/F1.2 ,B/W Mode: 0.08Lux/F1.2
|
|
DWDR
|
≥80db
|
|
|
|
Interfaces
|
Audio Talkback
|
1 CH MIC External access, 3.5mm
AV interface（Option）
|
|
Audio Output
|
1 CH
speaker output, 3.5mm AV interface（Option）
|
|
Network Interface
|
10/100M BASE-TX,RJ-45 connector
|
|
Reset Button
|
YES
|
|
|
|
Audio&Video encoding
|
Max.
Image Resolution
|
2592(H)*1520(V)
|
|
Video Compression
|
H264,Baseline/Main
Profile/High Profile;H.265 Main Profile
|
|
Frame Rate
|
Main Stream
|
2592*1520
1~25fps ; 2048*1520,1~25fps; 1920*1080 1~25fps
|
|
Sub Stream
|
720*576/640*480/640*352/352*288/320*240 ;1~25fps
|
|
Bit Rate
|
30Kbps～16Mbps,Supports CBR/VBR
|
|
Image Settings
|
Saturation,
brightness, contrast adjustable through client software or web browser
|
|
Title OSD Settings
|
Supports
channel name, date, and video stream information overlay;OSD location is
adjustable
|
|
Privacy Mask
|
4 configurable regions
|
|
Image Orientation
|
image flip and mirror
|
|
Auto Image Control Functions
|
Auto Exposure Control (AEC); Auto White Blance (AWB);Auto
Gain Control(AGC)
|
|
Manual Image Controls
|
Color saturation, hue, gamma, sharpness (edge enhancement),
|
|
Others
|
Anti
Fogging/Anti Trembling/IR Detection/IRIS/
|
|
Audio Compression
|
G.711A/G.711U/G.726
|
|
Two Way Audio
|
support
|
|
|
|
Network
|
Data storage
|
Video and Image
|
|
Recording
|
Recording set up to record by
Auto or manual (motion and alarm trigger, schedule)
|
|
Alarm Output
|
FTP,E-mail
|
|
Network protocol
|
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
|
|
System Compatibility
|
Support ONVIF
2.2 version
|
|
Remote View
|
WEB Browser
|
IE 6.0
Above; firefox;Google Chrome
|
|
Mobile Phone
|
Suport Windows
Mobile,Symbian, IOS system, Android system
|
|
Max. User Access
|
8
Users
|
|
|
|
General
|
Environmental Casing
|
Aluminum
alloy Housing,Indoor Use
|
|
Installation
|
Ceiling
mount, 3D adjustable
|
|
Operating Temperature
|
-10 °C ~ 50 °C
|
|
Operating Humidity
|
0% -85% RH
|
|
Power supplier
|
DC12V
|
|
Power Consumption
|
5W(MAX)
|
|
Dimension
|
68*68*223mm
|
|
Weight
|
495g
|
